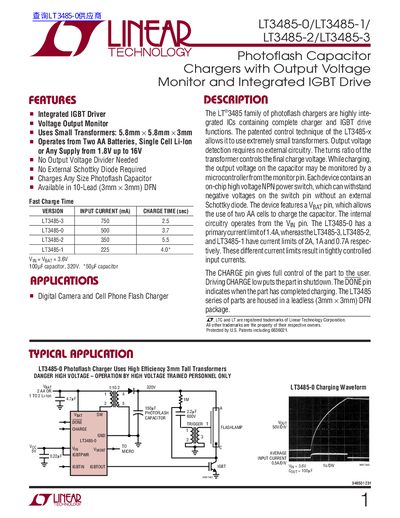

LT3485-0/LT3485-1/LT3485-2/LT3485-3 are photoflash capacitor chargers with output voltage monitor and integrated IGBT drive.
The LT3485 family are highly integrated photoflash charger ICs with an on‑chip IGBT driver, voltage‑output monitor and support for small transformers. They operate from 1.8 V to 16 V and can be powered by two AA cells, a single Li‑ion cell, or any suitable supply.
The document provides absolute maximum ratings, electrical characteristics, pin descriptions, functional block diagram, package details and typical performance curves for the four variants LT3485‑0, ‑1, ‑2 and ‑3.
| Quiescent Current (Not Switching) | 8 mA (typical) |
|---|---|
| Package | 10‑Lead (3 mm × 3 mm) Plastic DFN |
