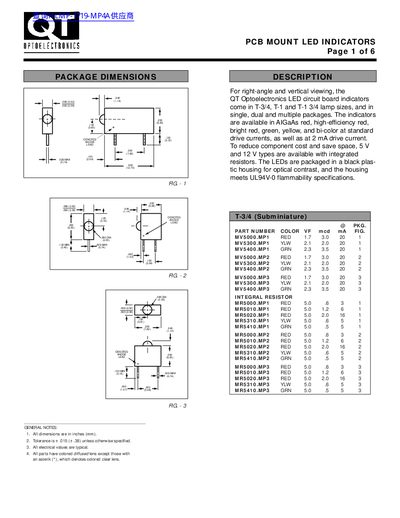

QT Optoelectronics LED circuit board indicators come in T-3/4, T-1 and T-1 3/4 lamp sizes, and in single, dual and multiple packages. The indicators are available in AIGaAs red, YLW and GRN.
The QT PCB Mount LED Indicators are available in several lamp sizes (T‑3/4, T‑1 and T‑1 3/4) and in a range of colors, including red, green, yellow, high‑efficiency red and bi‑color options. They are offered with integrated resistors for 5 V and 12 V operation and are housed in a black plastic shell that meets UL94 V‑0 flammability standards.
Each part number includes data on forward voltage, luminous intensity and typical drive current. Custom color combinations and multiple‑unit configurations are supported, with suffixes such as “‑2” or “‑3” to specify the number of LEDs in a stack.
| MV5000.MP1 Forward Voltage (VF) | 1.7 V |
|---|---|
| MV5000.MP1 Luminous Intensity | 3.0 mcd |
| MV5000.MP1 Typical Current | 20 mA |
| MV5300.MP1 Forward Voltage (VF) | 2.1 V |
| MV5300.MP1 Luminous Intensity | 2.0 mcd |
They are offered in T‑3/4, T‑1 and T‑1 3/4 lamp sizes.
All dimensions are toleranced to ±0.015 inches (±0.38 mm) unless otherwise specified.
Add a “‑2” suffix to the part number, e.g., MV64539.MP8‑2.
Yes, custom color combinations can be requested.
