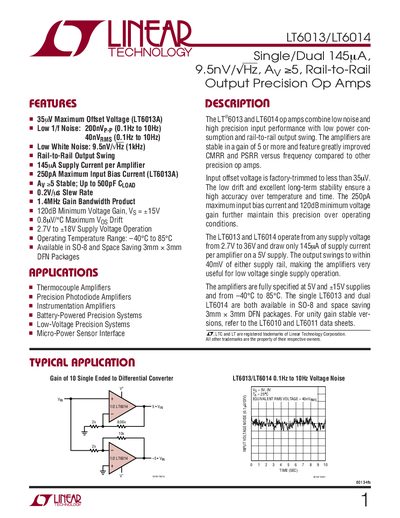

The LT®6013 and LT6014 are precision op amps from Linear Technology Corporation that combine low noise and high precision input performance with low power consumption and rail-to-rail output swing.
The LT6013 and LT6014 are low‑noise, low‑power precision operational amplifiers with rail‑to‑rail output swing. They feature low offset voltage, low input bias current, and high gain bandwidth, making them suitable for thermocouple, photodiode, and sensor interfaces. The devices are stable at a gain of 5 or higher and operate from 2.7 V to 36 V supply.
Typical applications include low‑voltage precision systems, micro‑power sensor interfaces, and Hall‑sensor amplifiers. The parts are offered in SO‑8 and 3 mm × 3 mm DFN packages, with detailed electrical characteristics and matching parameters provided for design optimization.
| Input Offset Voltage | 35 µV (max) |
|---|---|
| Input Bias Current | 250 pA (max) |
| Supply Voltage Range | 2.7 V to 36 V |
| Supply Current per Amplifier | 145 µA |
| Gain Bandwidth Product | 1.4 MHz |
| Slew Rate | 0.2 V/µs |
| Output Swing (no load, 50 mV overdrive) | 45 mV to 80 mV |
The devices operate from 2.7 V up to 36 V supply voltage.
Each amplifier draws about 145 µA of supply current.
The maximum input offset voltage is 35 µV.
They are available in SO‑8 and a 3 mm × 3 mm DFN package.
