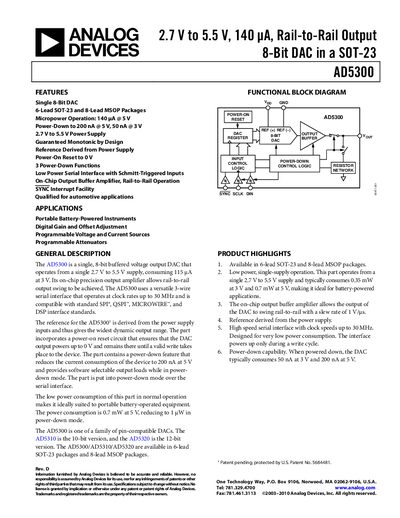

The AD5300 is an 8-bit DAC with a power supply range of 2.7 V to 5.5 V, operating current of 140 μA, and Rail-to-Rail output. It is available in SOT-23 package and features low power operation, single-chip design, power supply compensation, etc. It is suitable for portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, programmable attenuators, and other applications.
The AD5300 is a single‑channel 8‑bit DAC that operates from a single 2.7 V to 5.5 V supply. It features an on‑chip precision output buffer that provides rail‑to‑rail voltage swing and a low‑power serial interface compatible with SPI, QSPI, MICROWIRE and DSP standards.
Key features include micropower operation (115 µA at 3 V, 140 µA at 5 V), power‑down current as low as 50 nA, a 1 V/µs slew rate, and a maximum serial clock frequency of 30 MHz. The device is offered in 6‑lead SOT‑23 and 8‑lead MSOP packages and is qualified for automotive use.
| Resolution | 8 Bits |
|---|---|
| Supply Voltage (Vpp) | 2.7 V to 5.5 V |
| Maximum Serial Clock Frequency | 30 MHz (3.6 V–5.5 V), 20 MHz (2.7 V–3.6 V) |
| Output Voltage Range | 0 V to Vpp (rail‑to‑rail) |
The AD5300 operates from a single supply voltage between 2.7 V and 5.5 V.
The serial interface can run up to 30 MHz (30 MHz at 3.6 V–5.5 V, 20 MHz at 2.7 V–3.6 V).
Yes, the AD5300 is qualified for automotive applications and an automotive‑grade model is offered.
