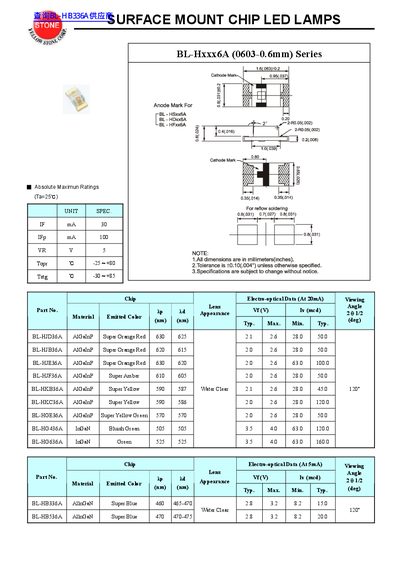

This data sheet lists the specifications of the BL-Hxxx6A series LED lamps.
This datasheet provides the absolute maximum ratings, recommended reflow soldering parameters, and detailed electro‑optical data for the BL-Hxxx6A series of surface‑mount chip LEDs (0603‑0.6 mm package). It lists forward voltage, current limits, reverse voltage, and operating temperature range, as well as dimensional tolerances.
The document also includes part‑by‑part data such as emitted wavelength, typical forward voltage at 20 mA, and lens viewing angles for each color variant (e.g., Super Orange Red, Super Yellow, Super Blue). These specifications help designers select the appropriate LED for their applications.
| Package size | 0603‑0.6 mm |
|---|---|
| Typical forward voltage (20 mA) | 0.35 V |
| Maximum forward current | 30 mA |
| Maximum reverse voltage | 5 V |
| Operating temperature range | -30 °C to +85 °C |
| Dimension tolerance | +0.10 mm |
The LEDs operate from –30 °C up to +85 °C.
Typical forward voltage is about 0.35 V.
The maximum forward current is 30 mA.
