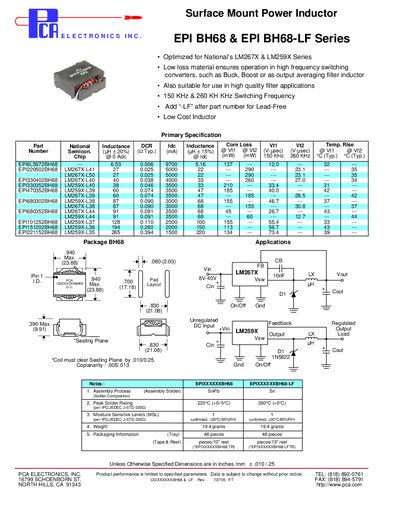

This datasheet provides the specifications of EPI BH68 & EPI BH68-LF series inductors, including inductance, DCR, temperature rise, maximum current, etc.
The EPI BH68 series from PCA Electronics provides low‑loss surface‑mount inductors optimized for National LM267X and LM259X switching regulator families. These parts support high‑frequency operation up to 150 kHz – 260 kHz and are suitable for buck, boost, or filter applications. A lead‑free variant is available by appending “‑LF” to the part number.
The datasheet includes detailed electrical parameters, recommended assembly processes, moisture‑sensitive level classifications, and packaging options such as 48‑piece trays or tape‑and‑reel on 13‑inch reels. Physical characteristics like weight (19.4 g) and dimensions are also provided.
| Lead‑Free Option | Add “-LF” after part number |
|---|---|
| Weight | 19.4 g |
| Packaging (Tray) | 48 pieces per tray |
| Packaging (Tape & Reel) | Pieces per 13" reel |
Add “-LF” after the part number to indicate the lead‑free variant.
The inductor weighs 19.4 grams.
The inductors are supplied in 48‑piece trays or on tape and reel (pieces per 13‑inch reel).
