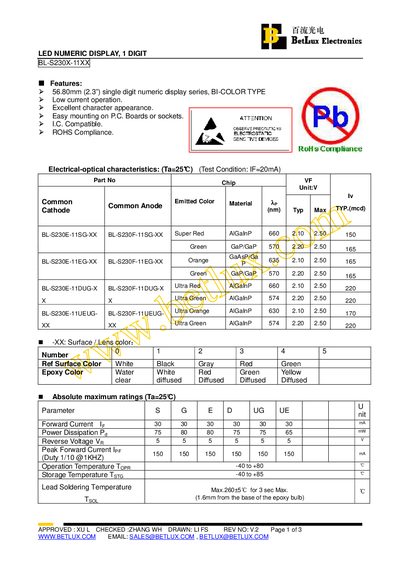

This PDF file is the specification sheet of betlux company's LED numeric display. The product is available in single and dual color, with a size of 2.3 inches. It can be powered by a DC power supply. The power consumption is low, the light color is bright, and it is compatible with IC.
The BL‑S230X‑11XX is a 1‑digit numeric LED display series with B‑color type LEDs. It offers low‑current operation, excellent character appearance, and easy mounting on PC boards or sockets. The device is compatible with standard IC packages and complies with RoHS.
The datasheet lists electrical‑optical characteristics such as forward current of 20 mA, typical forward voltages for various colors, power dissipation up to 75 mW, and reverse voltage of 5 V. Absolute maximum ratings, operating temperature range (‑40 °C to +80 °C), storage limits, and lead‑soldering parameters are also provided, together with a package diagram and typical performance curves.
| Test forward current (IF) | 20 mA |
|---|---|
| Typical forward voltage (Green) | 2.20 V |
| Power dissipation (Pd) | 75 mW |
| Operating temperature range | -40 °C to +80 °C |
| Storage temperature range | -40 °C to +85 °C |
| Lead soldering temperature (max) | 260 °C for 3 s |
| Package dimensions (approx.) | 32.40 mm × 10.9 mm |
The test condition specifies a forward current of 20 mA.
It operates from –40 °C up to +80 °C.
