Product Name: BL-S200X-11 Single Color LED Digit Display, Features: Low current operation; Excellent character appearance; Easy to mount on P.C. Boards or sockets.
The IBL‑S200X‑11 is a 1‑digit LED numeric display offered by Betlux Electronics. It features a 50.80 mm (2.0 in) single‑digit size, excellent character appearance, and easy mounting on PC boards or sockets. The device complies with RoHS regulations and is available in multiple colors such as red, orange, yellow, green, blue, and white.

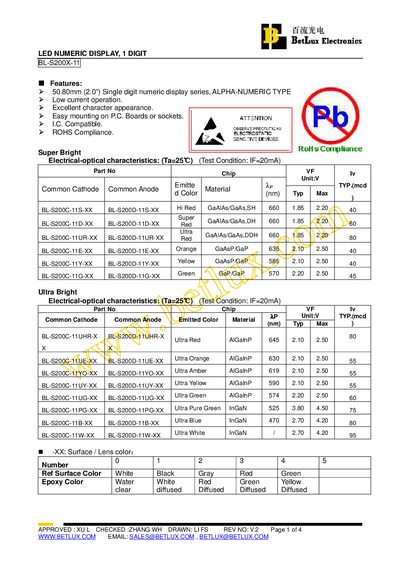

The datasheet lists detailed electrical‑optical characteristics for each color variant, absolute maximum ratings, and package dimensions. Key parameters include a continuous forward current of 30 mA, peak forward current of 150 mA (1 kHz, 1/10 duty), reverse voltage of 5 V, operating temperature from –40 °C to +80 °C, and a lead soldering temperature limit of 260 °C for 3 seconds.
| Display size | 50.80 mm (2.0 in) single digit |
|---|---|
| Forward current (continuous) | 30 mA |
| Peak forward current (1 kHz, 1/10 duty) | 150 mA |
| Reverse voltage | 5 V |
| Power dissipation | up to 120 mW |
| Operating temperature range | -40 °C to +80 °C |
| Storage temperature range | -40 °C to +85 °C |
| Lead soldering temperature limit | Max 260 °C for 3 s |
| Typical forward voltage (Red, 660 nm) | 1.85 V (typ) – 2.20 V (max) |
| RoHS compliance | Yes |
The device is rated for a continuous forward current of 30 mA.
It can tolerate a reverse voltage of up to 5 V.
The display operates from –40 °C to +80 °C.
