This document introduces a LED numeric display with features such as low current operation, excellent character appearance, and easy mounting. The product is available in various colors and brightness levels.

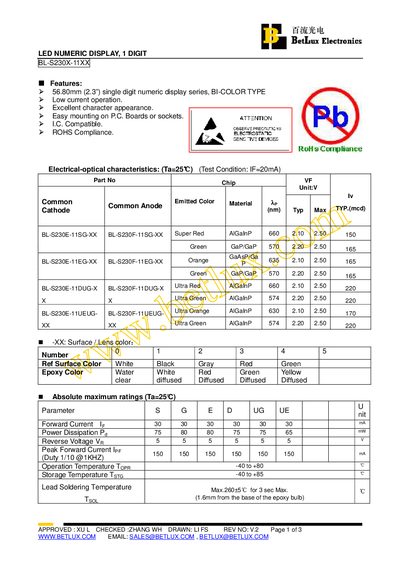

The BL‑S230X‑11XX is a 1‑digit numeric LED display offered by Betlux Electronics. It features a 2.3‑inch single‑digit B‑color type, low‑current operation, and easy mounting on PC boards or sockets. The device is compatible with standard IC drivers and complies with RoHS requirements.
The datasheet lists absolute maximum ratings, forward current, power dissipation, reverse voltage, and operating temperature ranges, as well as detailed package dimensions, pin configuration, and typical electrical‑optical characteristic curves for various color variants.
| Forward Current (If) | 30 mA |
|---|---|
| Power Dissipation (Pd) | 75 mW |
| Reverse Voltage (Vr) | 5 V |
| Peak Forward Current (Ipp) | 150 mA |
| Operating Temperature | -40 °C to +80 °C |
| Storage Temperature | -40 °C to +85 °C |
The forward current (If) is rated at 30 mA.
The display can tolerate a reverse voltage of 5 V.
It operates from –40 °C up to +80 °C.
The maximum power dissipation is 75 mW.
