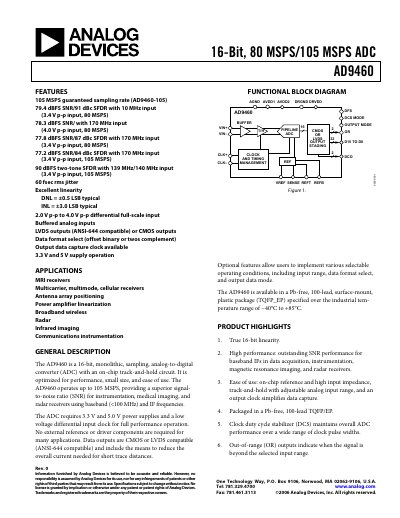

AD9460 is a 16-bit ADC from Analog Devices (ADI), with a sampling rate of up to 105MSPS and support for LVDS output.
The AD9460 is a 16‑bit monolithic ADC optimized for high performance, small size, and ease of use. It operates up to 105 MSPS, supports 3.3 V and 5 V supplies, and offers both LVDS and CMOS output options.
The device is supplied in a 100‑lead TQFP_EP package, rated for –40 °C to +85 °C operation, and includes detailed specifications for DC, AC, digital, and switching performance, as well as pin configurations, timing diagrams, and evaluation board information.
| Resolution | 16 bits |
|---|---|
| Maximum Sampling Rate | 105 MSPS |
| Supply Voltages | AVDD1 3.3 V, AVDD2 5.0 V, DRVDD 3.3 V |
| Package | 100‑Lead TQFP_EP |
| Operating Temperature Range | ‑40 °C to +85 °C |
The AD9460‑105 version guarantees a 105 MSPS sampling rate.
It requires AVDD1 3.3 V, AVDD2 5.0 V, and DRVDD 3.3 V.
The device is supplied in a 100‑lead TQFP_EP package.
It is rated for –40 °C to +85 °C operation.
