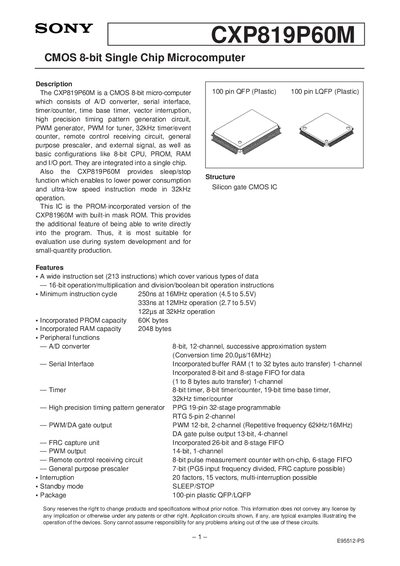

The CXP819P60M is a CMOS 8-bit microcomputer which consists of A/D converter, serial interface, timer/counter, time base timer, vector interruption, high precision timing pattern generation circuit, PWM generator, PWM for tuner, 32kHz timer/event counter, remote control receiving circuit, general purpose prescaler, and external signal, as well as basic configurations like 8-bit CPU, PROM, RAM and I/O port. They are integrated into a single chip. Also the CXP819P60M provides sleep/stop function which enables to lower power consumption and ultra-low speed instruction mode in 32kHz operation. This IC is the PROM-incorporated version of the CXP81960M with built-in mask ROM. This provides the additional feature of being able to write directly into the program. Thus, it is most suitable for evaluation use during system development and for small-quantity production.
The CXP819P60M is a CMOS 8‑bit single‑chip microcomputer offered in a 100‑pin QFP/LQFP package. It integrates an A/D converter, serial interface, timers, PWM generators, a 60 KB PROM, 2 KB RAM and a variety of peripheral functions.
The document provides a full description of the device’s features, pin configurations, electrical characteristics, and package dimensions, making it a reference for designers evaluating or implementing the chip in their systems.
| PROM capacity | 60 KB |
|---|---|
| RAM capacity | 2048 bytes |
| Minimum instruction cycle (16 MHz) | 250 ns |
| Operating voltage | 4.5 V – 5.5 V |
| Maximum clock frequency | 16 MHz |
The device includes a 60 KB PROM.
It provides 2048 bytes of RAM.
The minimum instruction cycle is 250 ns.
