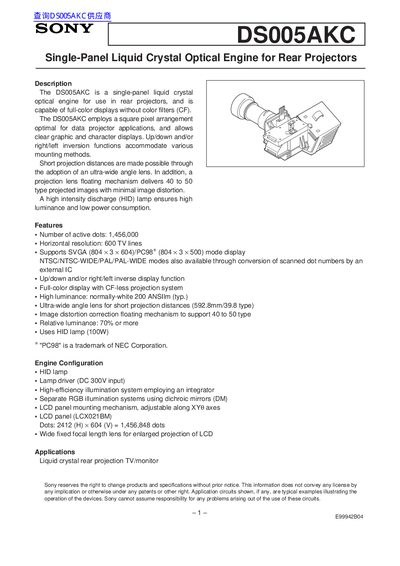

This document is a user manual for the Sony DS005AKC optical engine. The DS005AKC is a single-panel liquid crystal optical engine for use in rear projectors. It supports full-color displays and uses a square pixel arrangement that is optimal for data projector applications. It allows clear graphics and character displays. It has up/down and/or right/left inversion functions that accommodate various mounting methods. Short projection distances are made possible through the adoption of an ultra-wide angle lens. Additionally, a projection lens floating mechanism delivers 40 to 50 type projected images with minimal image distortion. A high intensity discharge (HID) lamp ensures high luminance and low power consumption.
The DSOO5AKC is a single‑panel liquid crystal optical engine designed for rear‑projection TVs and monitors. It delivers full‑color, CF‑less projection with an ultra‑wide angle lens and a floating mechanism that reduces image distortion for short‑throw applications.
The manual covers basic operation, pin descriptions, electro‑optical and optical characteristics, distortion correction, panel adjustment, and a list of service parts with part numbers. It also includes environmental ratings, lamp driver requirements, and typical performance figures such as contrast ratio and luminous intensity.
| Number of active dots | 1,456,000 |
|---|---|
| Horizontal resolution | 600 TV lines |
| Luminous intensity (typical) | 200 ANSI lm |
| Lamp power | 100W HID |
| Input voltage (lamp driver) | 220‑410 V |
| Power consumption (typical) | 110 W |
| Projection distance | 592.8 mm‑752.3 mm |
| F number (lens) | 1.79 |
| Half angle of view | 38.1° |
Apply DC 300 V to the lamp driver.
The lamp unit is listed as part number DS‑B011.
Horizontal adjustment is 0.5 mm and vertical adjustment is +1.0 mm.
The typical luminous intensity is 200 ANSI lm.
