The LTC ®1096/LTC1096L/LTC1098/LTC1098L are micropower, 8-bit A/D converters that draw only 80µA of supply current when converting.
The LTC1096/LTC1096L family are micropower, 8‑bit successive‑approximation A/D converters that draw only 80 µA during conversion and as little as 1 nA in shutdown. They are offered in 5 V (LTC1096) and 3 V (LTC1096L) versions and support sample‑and‑hold, a single differential input, and a 33 kHz maximum sample rate.

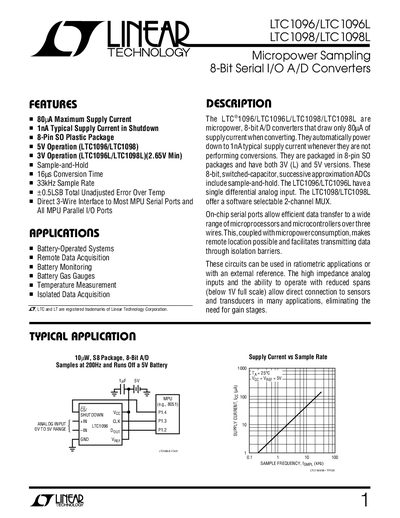

The datasheet provides detailed electrical characteristics, recommended operating conditions, package dimensions, and example circuits for battery‑operated systems, remote data acquisition, and battery monitoring. It also lists related parts and typical application schematics.
| Maximum Supply Current | 80 µA |
|---|---|
| Shutdown Supply Current (typical) | 1 nA |
| Maximum Sample Rate | 33 kHz |
| Supply Voltage Range (LTC1096L) | 2.65 V to 4 V |
The LTC1096/LTC1096L draws about 80 µA of supply current during conversion.
In shutdown mode the typical supply current is 1 nA.
The device can sample up to 33 kHz when operated at 5 V.
