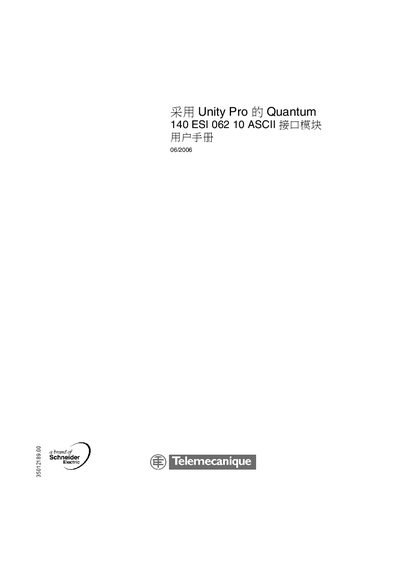

Telemecanique Quantum 140 ESI 062 10 User Manual

This product is a Modicon Quantum 800 (Q I/O ;_ series product, model number is 0H;L, and the price is 35012189.00.

Brand: Telemecanique
Category: Automation control Equipment
Document type: User Manual
Language: Chinese
Pages: 90
File format: PDF
File size: 5.2 MB
Published: 17 September, 2011
Updated: 30 September, 2023
MD5 checksum: 43E713B8E1D7A502C00085E40D27F392
PDF: Telemecanique Quantum 140 ESI 062 10 User Manual PDF

About this manual

The manual provides detailed instructions for installing and using the Quantum 140 ESI 062 10 ASCII interface module with Unity Pro. It covers safety symbols, command set, and data handling procedures.

Safety information, ASCII message format, and command descriptions (e.g., READ ASCII MESSAGE, WRITE ASCII MESSAGE, SET TOD) are presented, along with hardware reference tables showing registers and I/O configuration. This manual is written in Chinese.

What's inside

Safety Information
ASCII Message Format
Commands
Installation and Use
Hardware Reference
Module Overview

Specifications

I/O Registers	12 Output, 12 Input
Memory Types	volatile and nonvolatile
Checksum Support	Yes

Frequently asked questions

How can I read an ASCII message from the module?

Use the READ ASCII MESSAGE command to retrieve ASCII data from the module.

How do I set the time of day on the module?

Send the SET TOD command with the desired time value.

Download PDF (5.2 MB)
