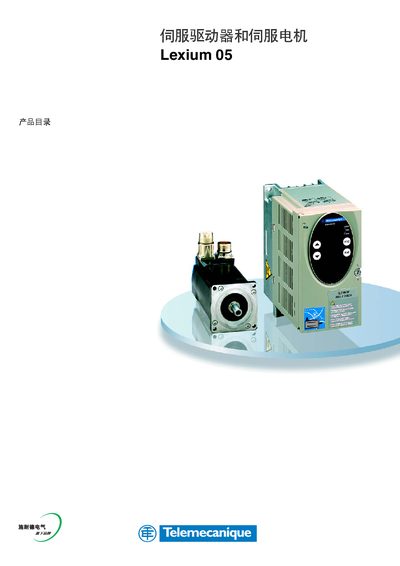

This document is the product catalog of Lexium 05 servo drive and servo motor. It introduces the overview, functions, features, models, options and sizes of the products.
The Lexium 05 servo driver combined with BSH servo motors provides a compact, high‑performance solution for a wide range of industrial applications. It offers multiple power‑supply options from 100 V single‑phase up to 480 V three‑phase and power ratings from 0.4 kW to 6 kW, while the BSH motors deliver torque from 0.5 Nm to 36 Nm and speeds up to 8000 rpm.
The system integrates functions such as built‑in EMC filters, drop‑out safety, automatic tuning, and supports CANopen, Modbus and Profibus DP interfaces. Optional accessories include brake resistors, EMC input filters, line reactors and integrated brakes. The catalog also provides wiring diagrams, EMC compliance measures, installation notes and information on the PowerSuite configuration software. This manual is written in Chinese.
| Power supply voltage (single‑phase) 100–120 V | 0.4–1.4 kW |
|---|---|
| Power supply voltage (three‑phase) 200–240 V | 0.75–3.2 kW |
| Motor rated torque | 0.5 Nm to 36 Nm |
| Motor rated speed | 1500 rpm to 8000 rpm |
| Current loop sampling time | 62.5 µs |
The driver includes an integrated drop‑out safety function that stops the motor when power is lost.
