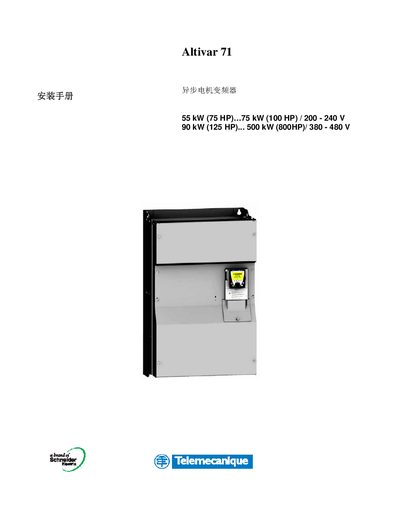

This document provides step‑by‑step instructions for installing the Altivar 71 variable frequency drive. It includes safety precautions, wiring diagrams, and configuration procedures required to commission the drive for motor applications.
The guide also lists technical data such as power ratings, input voltage ranges, and operating frequency, and offers troubleshooting tips and maintenance recommendations to ensure reliable operation.
| Power rating | 55 kW (75 HP) to 500 kW (800 HP) |
|---|---|
| Input voltage | 200‑240 V or 380‑480 V |
| Output voltage | 200‑240 V or 380‑480 V |
| Operating frequency | 50 Hz / 60 Hz |
| Ambient temperature limit | 50 °C (122 °F) |
The Altivar 71 can be powered from 200‑240 V or 380‑480 V, depending on the model.
The drive is available up to 500 kW (800 HP).
It operates on either 50 Hz or 60 Hz mains frequency.
The device is rated for an ambient temperature up to 50 °C (122 °F).
