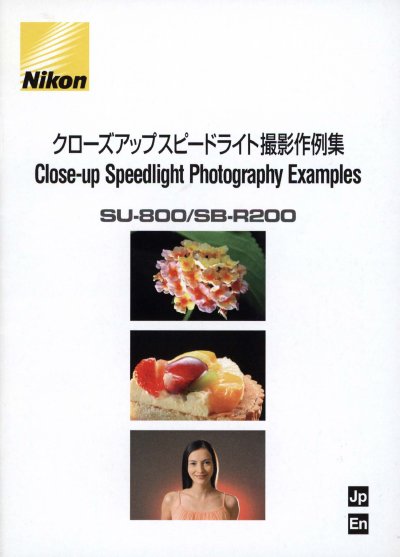

This document illustrates close-up speedlight photography examples with SU-BOO/SB-R200 and demonstrates various lighting effects that can be achieved through wireless close-up flash operation.
The booklet provides examples of close‑up speedlight photography using the SB‑R200 flash. It shows how wireless close‑up flash operation can create a variety of lighting effects and includes sample setups with different lenses.
It also covers dual‑light, triple‑light, and multiple‑flash configurations, the use of the optional Diffuser SW‑12, and important handling notes such as keeping the sensor window aimed at the Commander unit. Language support is limited to Japanese and English, with references to the main instruction manual for other languages. This manual is written in Chinese.
| Flash mode | TTL |
|---|---|
| Supported lens (105mm) | AF Micro‑Nikkor 105mm f/2.80 |
| Supported lens (60mm) | AF Micro‑Nikkor 60mm f/2.80 |
| Supported lens (zoom) | AF‑S DX Zoom‑Nikkor 18‑70mm f/3.5‑4.5G IF‑ED |
| Diffuser accessory | SW‑12 |
Direct the light sensor window toward the Commander unit and do not block it.
Yes, attach the Diffuser SW‑12 to soften shadows.
