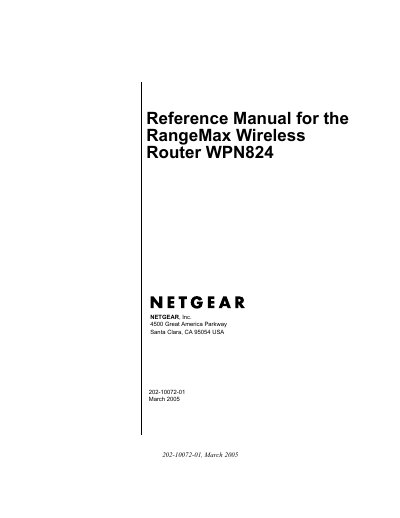

This reference manual provides instructions for using the RangeMax Wireless Router WPN824
This Reference Manual covers the full range of tasks for the Netgear WPN824 Wireless Router, from initial installation and basic configuration to advanced features such as content filtering, security settings, and firmware upgrades. It includes safety notices, FCC compliance information, and a detailed table of contents to help users locate the needed sections quickly.
Key sections include installation steps, wireless configuration (including MIMO, 802.11g, and security protocols), maintenance procedures, troubleshooting guides, and an extensive technical specifications appendix. The manual also provides a glossary of networking terms and references to related Netgear publications.
| Supported Network Protocols | TCP/IP, RIP-1, RIP-2, DHCP, PPPoE |
|---|---|
| Power Adapter Input (North America) | 120V, 60 Hz |
| Power Output | 12 V DC @ 1 A, 22 W max |
| Dimensions | 28 × 175 × 119 mm (1.1 × 6.89 × 4.68 in.) |
| Weight | 0.3 kg (0.66 lb) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Wireless Data Rate | Up to 108 Mbps |
| Wireless Frequency | 2.4 – 2.5 GHz |
| LAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| WAN Interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
Reorient or relocate the receiving antenna, increase the separation between the router and the receiver, or connect the router to a different circuit.
Use the "Restoring the Default Configuration and Password" procedure described in the Maintenance chapter.
The router supports WEP (40‑bit/64‑bit and 108‑bit/128‑bit) and WPA‑PSK security protocols.
