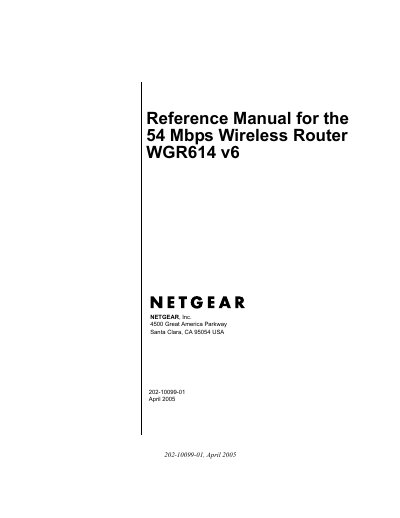

This is a reference manual for the 54 Mbps Wireless Router WGR614 v6 released by NETGEAR
This reference manual covers everything you need to install, configure, and maintain the Netgear WGR614 v6 54 Mbps wireless router. It includes detailed chapters on initial setup, wireless and internet settings, security features, and advanced configuration options.
Key sections include an introduction to the router’s hardware, step‑by‑step configuration guides, content‑filtering and firewall settings, maintenance procedures, technical specifications, and a glossary of networking terms.
| Power input (North America) | 120 V, 60 Hz |
|---|---|
| Power output | 12 V DC @ 1 A (22 W max) |
| Dimensions | 28 × 175 × 119 mm (1.1 × 6.89 × 4.68 in.) |
| Weight | 0.3 kg (0.66 lb) |
| Operating temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating humidity | Up to 90 % non‑condensing |
| LAN interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| WAN interface | 10BASE‑T or 100BASE‑Tx, RJ‑45 |
| Supported network protocols | TCP/IP, RIP‑1, RIP‑2, DHCP, PPPoE |
| Wireless data rates | 1‑54 Mbps (802.11b/g) |
Reorient or relocate the receiving antenna, increase the separation between the equipment and the receiver, or connect the router to a different circuit.
The router uses a 120 V / 60 Hz input in North America and provides a 12 V DC output at up to 1 A (22 W maximum).
It supports data rates of 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps using 802.11b/g.
Use the "Restoring the Default Configuration and Password" procedure described in the Maintenance chapter.
