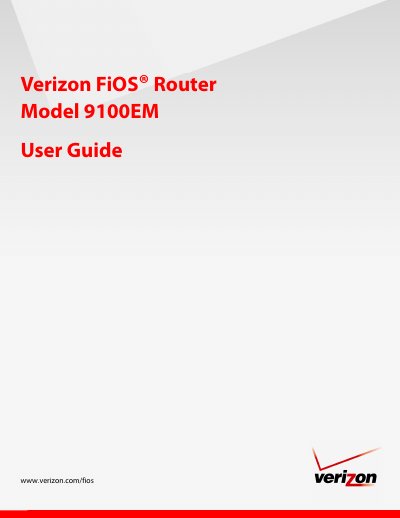

This manual provides information on the hardware and software features of the Verizon FiOS Router (Model 9100EM). It also provides instructions on how to set up the router and how to connect and configure network devices.
This guide covers everything needed to set up and operate the Verizon FiOS Router 9100EM, including hardware features, networking requirements, and detailed configuration steps. It also includes regulatory information, technical specifications, and support resources.
The manual is organized into sections such as Product Description, Hardware Features, Installing the Router, Wireless Setup, Firewall Settings, and Advanced Options, making it easy to find the information you need.
| Power Supply | 120 VAC to 12 VDC wall‑mount |
|---|---|
| Dimensions | Height 1.9 in., Width 10.8 in., Depth 5.75 in. |
| Weight | Approx. 1.32 lb (0.60 kg) |
| Relative Humidity | 5 % to 95 % non‑condensing |
| FCC ID | CH89100VMXX-10 |
| LAN Ethernet Ports | Four RJ‑45 ports |
The router provides four LAN Ethernet connectors (RJ‑45).
Solid Green means power is on; Flashing Green shows the router is performing a power‑on self‑test; Solid Red indicates a POST failure.
A reset push button is located on the rear panel of the router.
