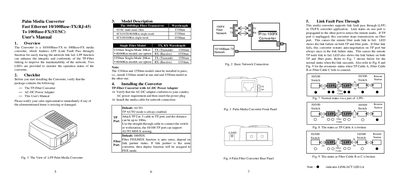

Palm Media Converter Fast Ethernet 10/100Base-TX(RJ-45) To 100Base-FX(ST/SC) User's Manual is the user manual of the 10/100Base-TX to 100Base-FX media converter produced by Palm.
The Palm media converter converts Fast Ethernet 10/100Base‑TX (RJ‑45) to 100Base‑FX (ST/SC) fiber. It includes a Link Fault Pass‑through (LFP) function that propagates link status between the copper and fiber ports and provides LED indicators for link activity.
The manual covers unpacking, installation of the AC‑DC power adapter, cable connections, configuration defaults (auto‑negotiation), and technical specifications such as power requirements, temperature range, and supported cable lengths.
| Data Transfer Rate (100Mbps) | 148,800 PPS |
|---|---|
| Data Transfer Rate (10Mbps) | 14,880 PPS |
| Power Requirement | 1A @ 3.3V DC from AC‑DC Adapter |
| Ambient Temperature | 0° to 40°C |
| Humidity | 5% to 90% |
| Dimensions | 25(H) x 610W) x 57.5(D) mm |
| LED Indicators | TP(LINK/ACT), FX(LINK/ACT) |
| Standards | IEEE802.3u 10/100Base‑TX, 100Base‑FX |
| TP Cable Limitation | Cat.5 up to 100 m |
| Fiber Cable Limitation (Multi‑mode Full‑duplex) | 2 km |
| Fiber Cable Limitation (Single‑mode Full‑duplex) | 5/20/40/60/80/100 km |
The device uses an AC‑DC power adapter that supplies +3.3 V DC at up to 1 A.
TP (copper) cables can be up to 100 m using Cat 5 or higher; multi‑mode fiber supports up to 2 km full‑duplex, and single‑mode fiber up to 5–100 km depending on the model.
