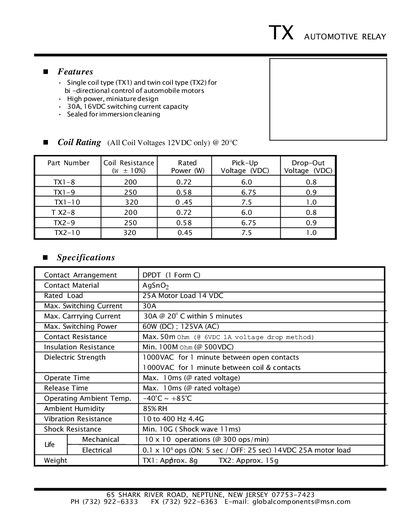

The TX Automotive Relay series offers single‑coil (TX1) and twin‑coil (TX2) designs for bi‑directional control of automobile motors. Features include high‑power miniature construction, 30 A switching capacity, and a sealed case suitable for immersion cleaning.
Technical specifications cover coil resistance, contact arrangement (DPDT, Form C), rated load, switching current, dielectric strength, operating temperature, vibration and shock resistance, and mechanical life. Ordering details list part numbers, coil ratings, contact materials, and terminal configurations.
| Coil Rating (All Coil Voltages 12VDC only) @ 20°C | TX1‑8 200 Ω, TX1‑9 250 Ω, TX1‑10 320 Ω; TX2‑8 200 Ω, TX2‑9 250 Ω, TX2‑10 320 Ω |
|---|---|
| Max. Switching Current | 30 A |
| Max. Switching Power | 60 W (DC) ; 125 VA (AC) |
| Contact Resistance | Max. 50 mΩ @ 6 VDC 1 A |
| Insulation Resistance | Min. 100 MΩ @ 500 VDC |
| Dielectric Strength | 1 kV AC for 1 min between open contacts; 1 kV AC for 1 min between coil & contacts |
| Operate Time | Max. 10 ms @ rated voltage |
| Release Time | Max. 10 ms @ rated voltage |
| Operating Ambient Temperature | 40 °C ~ +85 °C |
The relay can switch up to 30 A.
It operates from 40 °C up to +85 °C.
Both operate and release in a maximum of 10 ms at the rated voltage.
The insulation resistance is at least 100 MΩ at 500 VDC.
