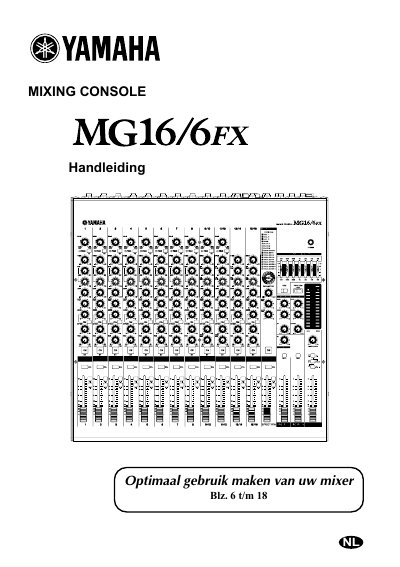

This is a product manual that describes how to use the MG16/6FX product
This manual begins with safety precautions, emphasizing the use of the supplied PA‑30 power adapter, keeping the power cord away from water, heavy objects, and avoiding bending or twisting the cord. It also explains how to connect the adapter to the AC ADAPTOR IN socket and to disconnect it when the mixer is not in use.
The guide then describes the mixer’s layout and features: 16 input channels, balanced XLR and TRS inputs on channels 1‑12, RCA inputs on channels 13‑16, two AUX SENDs, an EFFECT SEND, a monitor C‑R‑OUT, phantom power for condenser microphones, and insert points for channels 1‑8. Basic wiring, signal flow, and recommended setup procedures are covered. This manual is written in Dutch.
| Input channels | 16 |
|---|---|
| AUX SENDs | 2 (tweevoudige) |
| Channel 1‑12 connectors | XLR and TRS |
| Channel 13‑16 connectors | TRS and RCA |
| Effect send | 1 |
Only the supplied PA‑30 power adapter may be used.
Do not bend, twist, or pull the cord, keep it away from water and heavy objects, and disconnect it when not in use.
The mixer provides 16 input channels.
Each of channels 1‑12 has both an XLR microphone input and a TRS line input.
