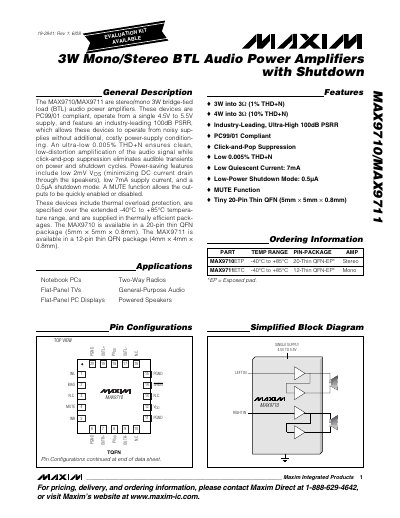

MAX9710/MAX9711 3W Mono/Stereo BTL Audio Power Amplifiers with Shutdown
The MAX9710 (stereo) and MAX9711 (mono) audio power amplifiers operate from a single 4.5 V‑5.5 V supply and deliver up to 3 W into a 3 Ω load. They feature industry‑leading 100 dB power‑supply rejection, ultra‑low 0.005 % THD+N, click‑and‑pop suppression, a 0.5 µA shutdown mode and a mute input.
Both devices are supplied in thin‑QFN packages (20‑pin for MAX9710, 12‑pin for MAX9711) and are rated for –40 °C to +85 °C operation. Thermal‑overload protection shuts the output off at 160 °C, and proper PCB layout and grounding are recommended for optimal performance.
| Supply Voltage Range | 4.5 V to 5.5 V |
|---|---|
| Maximum Output Power (3 Ω) | 3 W |
| Total Harmonic Distortion + Noise | 0.005 % THD+N |
| Power‑Supply Rejection Ratio | 100 dB |
| Operating Temperature Range | -40 °C to +85 °C |
| Thermal Shutdown Threshold | 160 °C |
They operate from a single 4.5 V to 5.5 V supply.
It can deliver up to 3 W into a 3 Ω load.
