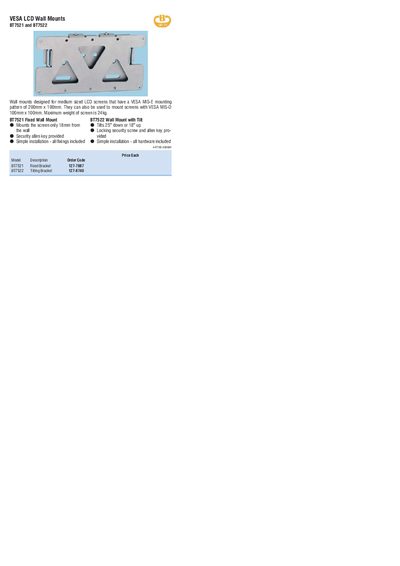

This PDF document is a description of Bet-at-home's VESA LCD wall mounts, including the BT7521 fixed bracket and the BT7522 tilting bracket. These wall mounts are suitable for medium-sized LCD screens with a VESA MIS-E mounting pattern of 200mm x 100mm, and can also be used to mount screens with a VESA MIS-D 100mm x 100mm. The maximum screen weight is 24kg.
The BT7521 and BT7522 are VESA LCD wall mounts designed for medium‑sized screens. They accept VESA MIS‑E 200 mm × 100 mm and MIS‑D 100 mm × 100 mm patterns and can hold screens weighing up to 24 kg. The fixed BT7521 positions the screen only 18 mm from the wall, while the tilting BT7522 provides a tilt range of 25° down and 18° up.
Both models include all necessary hardware for simple installation, a locking security screw, and an allen key. Ordering codes are 127‑7687 for the BT7521 fixed bracket and 127‑8740 for the BT7522 tilting bracket.
| VESA MIS‑E pattern | 200 mm × 100 mm |
|---|---|
| VESA MIS‑D pattern | 100 mm × 100 mm |
| Maximum screen weight | 24 kg |
| Screen offset from wall (BT7521) | 18 mm |
| Tilt range (BT7522) | 25° down, 18° up |
They support VESA MIS‑E 200 mm × 100 mm and VESA MIS‑D 100 mm × 100 mm patterns.
The mounts can hold screens up to 24 kg.
It mounts the screen only 18 mm from the wall.
The BT7522 tilts 25° down or 18° up.
