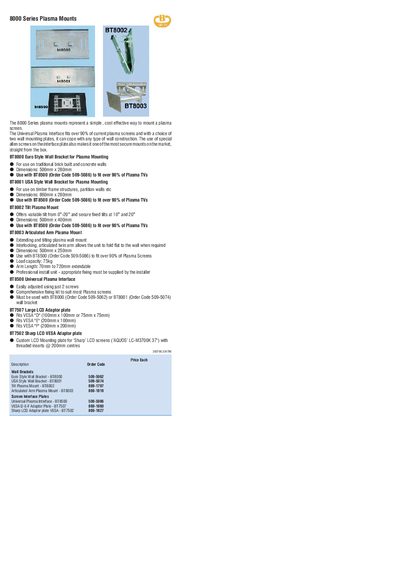

The document introduces a range of wall brackets and screen interface plates for mounting plasma screens. The brackets are secure and suitable for different types of wall construction.
The 8000 Series plasma mounts provide a simple, cost‑effective way to mount plasma screens. The universal plasma interface fits over 90% of current plasma screens and, with two wall‑mounting plate options, works with most wall constructions.
The series includes the BT8000 Euro style wall bracket, BT8001 USA style wall bracket, BT8002 tilt mount, BT8003 articulated arm mount, BT8500 universal interface and LCD adaptor plates (BT7507, BT7502). Each model lists dimensions, load capacity and mounting options to suit various installation scenarios.
| BT8000 Dimensions | 500mm x 280mm |
|---|---|
| BT8001 Dimensions | 860mm x 280mm |
| BT8002 Tilt Range | 0°‑20° variable, fixed at 10° and 20° |
| BT8003 Load Capacity | 75kg |
| BT8003 Arm Length | 70mm to 720mm extendable |
| BT7507 VESA D Size | 100mm x 100mm or 75mm x 75mm |
| BT7502 VESA E Size | 200mm x 100mm |
| BT7502 VESA F Size | 200mm x 200mm |
It is intended for use on traditional brick built and concrete walls.
The mount can support up to 75 kg.
It offers variable tilt from 0° to 20° and fixed tilts at 10° and 20°.
