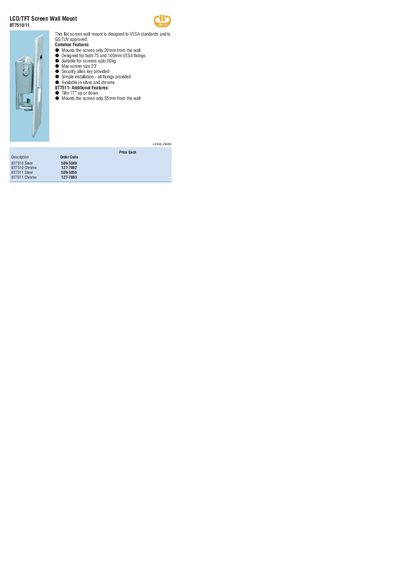

This document provides detailed parameter information about the BT7510/11 LCD/TFT screen wall mount, including price, description, order code, etc.
The BT7510/BT7511 wall mount is designed to VESA standards and is GS/TUY approved. It provides a flat‑screen mounting solution that positions the screen close to the wall and includes all necessary fixings and a security allen key.
Common features include a 20 mm (BT7510) or 55 mm (BT7511) mounting distance, support for 75 mm and 100 mm VESA patterns, a maximum screen size of 23", and a weight capacity of up to 20 kg. The BT7511 adds a 17° tilt capability. Both models are available in silver and chrome, with order codes 509‑5049/127‑7692 for BT7510 and 509‑5050/127‑7693 for BT7511.
| VESA compatibility | 75 mm and 100 mm |
|---|---|
| Mount distance (BT7510) | 20 mm from wall |
| Mount distance (BT7511) | 55 mm from wall |
| Maximum screen size | 23" |
| Maximum screen weight | 20 kg |
| Tilt angle (BT7511) | ±17° |
| Finish options | Silver, Chrome |
The BT7510 mounts the screen only 20 mm from the wall.
Yes, the BT7511 can tilt the screen up or down by 17°.
Both 75 mm and 100 mm VESA fixings are supported.
