The document describes the features and characteristics of two dismantling tools. One is an adjustable cutting depth dismantling tool, suitable for dismantling round cables exceeding 25.0mm in diameter, and can remove various insulation layers. The other is a coax-stripping tool, which can strip the outer sheath, shield, and dielectricum of coaxial cables in one operation.

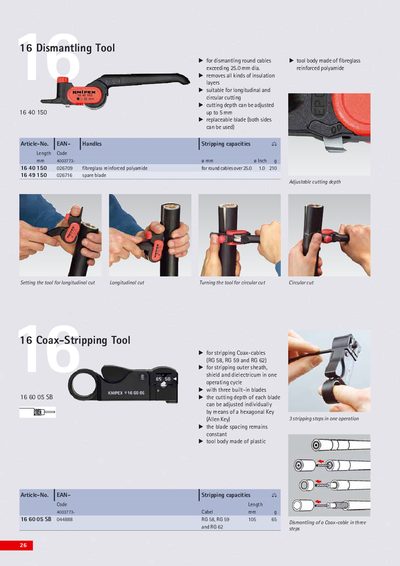

The KNIPEX 16 40 150 Dismantling Tool is designed for dismantling round cables exceeding 25 mm diameter and for longitudinal and circular cutting. Its body is made of fibreglass‑reinforced polyamide and it includes a replaceable double‑sided blade.
The tool offers an adjustable cutting depth of up to 5 mm, which can be set with a hexagonal key. A dedicated coax‑stripping version (model 16 6005) provides three built‑in blades for stripping RG 58, RG 59 and RG 62 cables in a single operation, with individual blade depth adjustment.
| Cutting depth (adjustable) | up to 5 mm |
|---|---|
| Tool body material | fibreglass reinforced polyamide |
| Maximum cable diameter for round cables | over 25 mm |
| Coaxial cable types supported | RG 58, RG 59, RG 62 |
| Coaxial cable stripping capacity (length) | up to 105 mm |
The cutting depth can be adjusted up to 5 mm.
It can strip RG 58, RG 59 and RG 62 coaxial cables.
The tool body is made of fibreglass‑reinforced polyamide.
Yes, it is suitable for round cables exceeding 25 mm in diameter.
