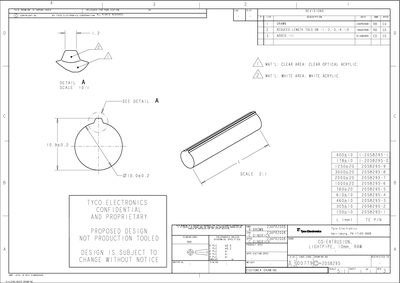

This document provides the detailed engineering drawing for the CO‑EXTRUSION A3 SIZE component, including dimensions, scale, material specifications, and revision information. It is intended for designers and manufacturers who need precise geometric data.
The drawing lists clear and white acrylic material zones, tolerance notes, and the drawing number with revision history. All information is marked as confidential and proprietary to Tyco Electronics.
| Clear Area Material | Clear Optical Acrylic |
|---|---|
| White Area Material | White Acrylic |
| Scale | 10:1 |
| Secondary Scale | 2:1 |
| Drawing Number | 2058295 |
| Revision | AMP 1470-19 REV 31MAR2000 |
The drawing number is 2058295.
The clear area uses clear optical acrylic, and the white area uses white acrylic.
