CDE SPA series solid polymer aluminum electrolytic capacitors have ultra-low ESR, high ripple current, long life, stable impedance and ESR vs. temperature, widely used in motherboard bypass, switching power supply input/output filters, power supply decoupling, high frequency noise reduction, laptop LCD display, automotive digital equipment, portable electronic equipment etc.
The SPA solid polymer aluminum SMT capacitors are designed for high‑frequency applications such as motherboard bypass, switching‑supply filters, power‑supply decoupling, laptop LCD displays, automotive digital equipment, and portable electronics. Their ultra‑low ESR and high ripple‑current capability make them suitable for bulk storage and ripple‑filtering tasks.

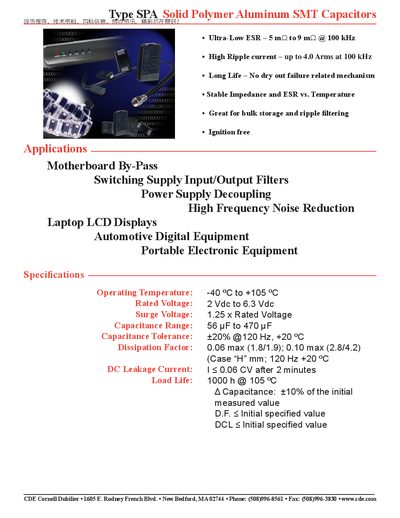

The datasheet lists operating temperature ranges, rated voltages, capacitance values, ESR, ripple current, and other key parameters, together with part numbers, packaging codes, and ordering information for each voltage and capacitance option.
| Operating Temperature | -40 °C to +105 °C |
|---|---|
| Rated Voltage | 2 Vdc to 6.3 Vdc |
| Surge Voltage | 1.25 × Rated Voltage |
| Capacitance Range | 56 µF to 470 µF |
| Capacitance Tolerance | +20 % @120 Hz, +20 °C |
| Dissipation Factor | 0.06 max (1.8/1.9); 0.10 max (2.8/4.2) |
| DC Leakage Current | ≤ 0.06 CV after 2 min |
| Load Life | 1000 h @ 105 °C |
| ESR (100 kHz) | 5 mΩ to 9 mΩ |
| Ripple Current (100 kHz) | up to 4.0 A rms |
The SPA capacitors operate from –40 °C up to +105 °C.
The series is offered with rated voltages from 2 Vdc to 6.3 Vdc.
They are used for motherboard bypass, switching‑supply input/output filters, power‑supply decoupling, high‑frequency noise reduction, laptop LCD displays, automotive digital equipment, and portable electronic equipment.
The ESR is ultra‑low, ranging from 5 mΩ to 9 mΩ at 100 kHz.
