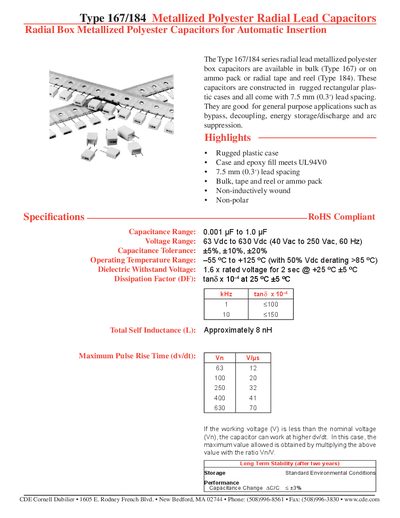

The Type 167/184 series radial lead metallized polyester box capacitors are available in bulk (Type 167) or on ammo pack or radial tape and reel (Type 184). These capacitors are constructed in rugged rectangular plas- tic cases and all come with 7.5 mm (0.3”) lead spacing. They are good for general purpose applications such as bypass, decoupling, energy storage/discharge and arc suppression.
The Type 167/184 series are rugged rectangular plastic‑case metallized polyester radial lead capacitors offered in bulk (Type 167) or on ammo pack or tape‑and‑reel (Type 184). All parts have a 7.5 mm (0.3 in) lead spacing and are suitable for general‑purpose applications such as bypass, decoupling, energy storage, discharge and arc suppression.
The document lists detailed electrical specifications, temperature limits, dielectric withstand, inductance, and pulse‑rise performance, together with test methods, insulation‑resistance results, and packaging dimensions for tape, reel and ammo‑pack formats. All capacitors are RoHS compliant and meet UL94V0 flame‑rating standards.
| Capacitance Range | 0.001 µF to 1.0 µF |
|---|---|
| Voltage Range | 63 Vde to 630 Vde (40 Vac to 250 Vac, 60 Hz) |
| Capacitance Tolerance | +5 %, 410 %, +20 % |
| Operating Temperature Range | –55 °C to +125 °C (with 50 % Vdc derating >85 °C) |
| Dielectric Withstand Voltage | 1.6 × rated voltage for 2 s @ +25 °C |
| Total Self Inductance | Approximately 8 nH |
| Lead Spacing | 7.5 mm (0.3 in) |
| RoHS Compliance | Yes |
All Type 167/184 capacitors have a 7.5 mm (0.3 in) lead spacing.
Yes, the capacitors are RoHS compliant.
The series is offered in bulk (Type 167), ammo pack, or tape‑and‑reel (Type 184).
They operate from –55 °C to +125 °C, with 50 % Vdc derating above 85 °C.
