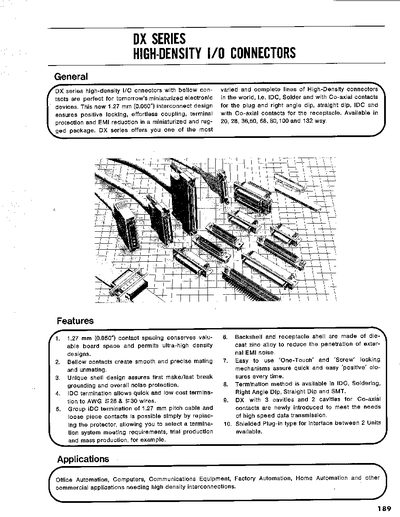

The DX series offers high‑density 1/0 I/O connectors with 1.27 mm (0.050 in) contact spacing, suitable for miniaturized electronic devices. Options include one‑touch and screw‑lock mechanisms, bellow contacts for smooth mating, and die‑cast zinc alloy shells for EMI shielding.
Connectors are available in multiple pin counts (20‑132 pins), various contact types (IDC, solder, right‑angle, straight dip, SMT, and coaxial), and support AWG #28 and #30 wires as well as ribbon cable formats. The datasheet provides detailed specifications, ordering codes, and accessory options.
| Current capacity | 0.54 |
|---|---|
| Rated voltage | AC125V |
| Insulation resistance | 250 MΩ or more at DC100V |
| Withstanding voltage | AC300V rms for 1 min |
| Plug shell material | Zinc alloy die‑cast, silver finish |
| Pin contact plating | Copper alloy with selective gold plating |
| Socket contact plating | Copper alloy with selective gold plating |
Both One‑Touch and Screw lock mechanisms are provided for quick and positive closures.
Pin counts of 20, 28, 36, 50, 60, 68, 80, 100 and 132 are available.
