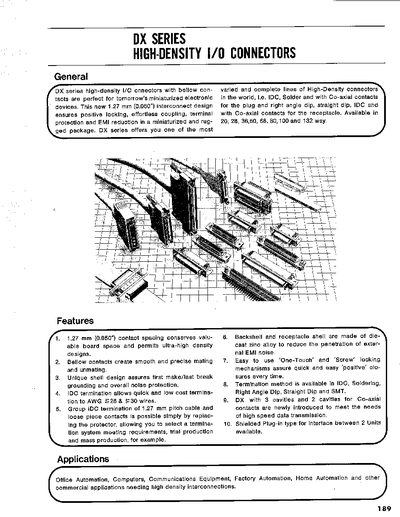

The DX Series provides a wide range of high‑density 1/0 connectors with 1.27 mm (0.050”) contact spacing, suitable for miniaturized electronic devices. Options include IDC, solder, and coaxial contacts, with one‑touch or screw locking mechanisms and a die‑cast zinc alloy shell for EMI protection.
These connectors are aimed at office automation, computers, communications equipment, factory and home automation, and other commercial applications that require high‑density interconnections. They support AWG #28 and #30 wires and are available in 20 to 132‑pin configurations with various shell and lock variations.
| Current capacity | 0.54 |
|---|---|
| Rated voltage | AC125V |
| Insulation resistance | 250M or more at DC100V |
| Withstanding voltage | AC300V rms for 1 minute |
| Plug shell material | Zinc alloy die‑cast, silver finish |
The connectors use a 1.27 mm (0.050”) contact spacing.
Both One‑Touch and Screw locking mechanisms are offered.
The connectors support AWG #28 and #30 wires.
