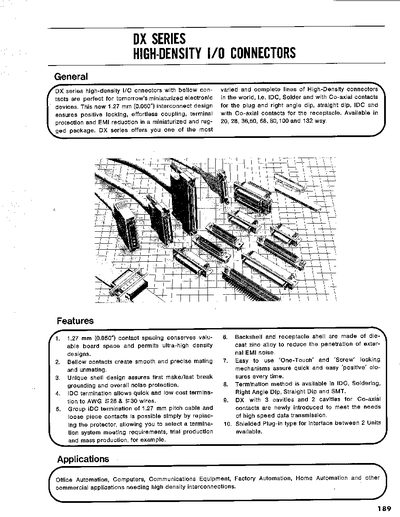

The DX series offers high‑density 1/0 connectors with 1.27 mm (0.050”) contact spacing, available in a variety of pin counts and lock types. Features include one‑touch and screw‑lock mechanisms, bellow contacts for smooth mating, and EMI‑reducing die‑cast zinc alloy shells.
The leaflet lists detailed specifications such as current capacity, rated voltage, insulation resistance, and material finishes, and provides ordering codes for plug, receptacle, coaxial, SMT, and accessory parts. Applications span office automation, computers, communications, factory and home automation.
| Current capacity | 0.54 |
|---|---|
| Rated voltage | AC125V |
| Insulation resistance | 250MΩ or more at DC100V |
| Contact resistance | 50 mΩ at DC100 mA |
| Withstanding voltage | AC300V rms for 1 minute |
The DX series uses a 1.27 mm (0.050”) contact spacing.
Both one‑touch and screw‑lock locking mechanisms are offered.
Connectors are available with 20, 28, 36, 50, 60, 68, 80, 100, and 132 pins.
