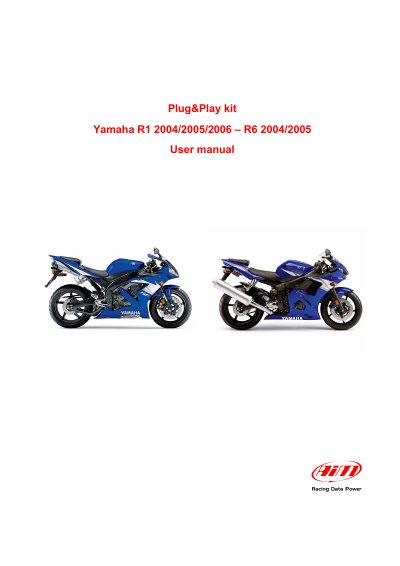

AIM MXL Strada & Pista Plug&Play Kit User Manual for Yamaha R1 2004-2006 and R6 2004-2005

About this manual

The MXL Plug&Play kit provides a ready‑to‑install dash that connects directly to the bike ECU and displays RPM, speed, water and air temperature, plus sensor data such as oil level, fuel level, and lighting signals. Two versions are offered – the Strada and the Pista – each supplied with the necessary brackets, cables, USB connection and optional infrared transmitter/receiver for lap timing.

Installation is designed to be quick and tool‑free: remove the stock dash, mount the MXL unit on the supplied bracket, and plug the wiring into the existing 16‑pin AMP connector. The kit is powered by the bike’s master switch and requires no cutting or drilling. After installation, the system operates in Running, Setting, or Diagnostic mode, and can be calibrated and configured via Race Studio 2 software on a PC.

What's inside

• Introduction
• Plug&Play kit composition
• Plug&Play kit installation
• MXL and Yamaha connectors pinout
• First start up and working mode
• Calibration, gear calculation, configuration, data download and analysis
• Appendix – Wirings and pinout
• Part Numbers

Specifications

Frequently asked questions

How is gear calibration performed?

Gear calibration is done at first start‑up; the display shows “RUNNING GEAR CAL” and the procedure is described in the Race Studio Configuration user manual.
