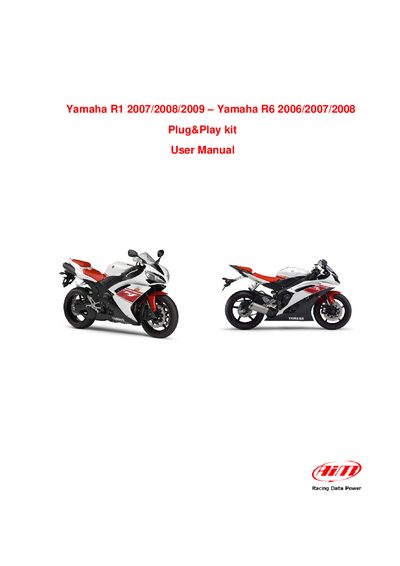

This manual describes the basic use of the MXL Plug&Play kit, including the kit contents, installation, wiring, configuration, data download and analysis.
The AIM MXL Plug&Play kit provides a ready‑to‑install dashboard and data logger for Yamaha R1 and R6 sport bikes. The kit includes the MXL unit, AMP wiring, USB cable with software CD, bracket hardware and optional infrared accessories, allowing riders to monitor RPM, speed, gear, temperatures, fuel level and more without additional sensors.
Installation is designed to be simple: the kit mounts to the high‑beam chassis using a black anodised aluminium bracket, connects to the stock ECU harness via plug‑and‑play connectors, and requires no cutting or drilling. The manual also covers connector pinouts, first start‑up, calibration, data download, and troubleshooting error codes.
| AMP connector pin count | 12 pins |
|---|---|
| Channel 5 cable length | 330 mm |
No, the wiring supplied with the kit is plug‑and‑play and must not be cut.
The kit is attached to the high‑beam chassis using the included bracket, requiring no drilling or bending of stock parts.
The kit contains the MXL Strada unit, AMP wiring, USB cable with Race Studio 2 software CD, a Yamaha bracket with washers and screws, and the user manual.
