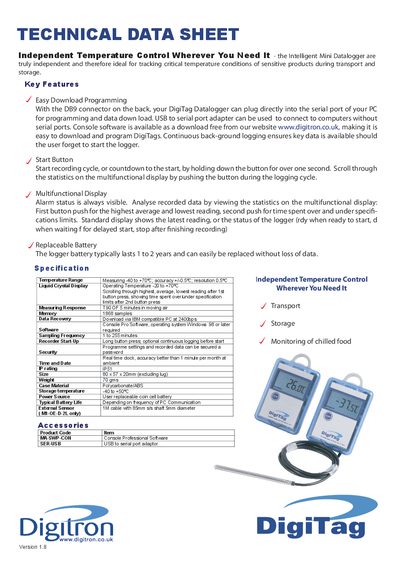

This document describes the key features and specifications of the Intelligent Mini Datalogger, including independent temperature control, easy download programming, multifunctional display, etc. It is ideal for tracking critical temperature conditions of sensitive products during transport and storage.
The DigiTag is an independent mini datalogger designed for tracking critical temperature conditions of sensitive products during transport and storage. It offers easy programming via a DB9 connector or USB‑to‑serial adapter, a multifunctional display with alarm status, and a start button that initiates recording after a long press.
The data sheet lists the device's performance specifications, such as temperature range, accuracy, memory capacity, and IP rating, and details accessories like console software and a USB‑to‑serial adaptor. Battery life, size, and external sensor options are also provided.
| Temperature Range | -40 to +70 °C |
|---|---|
| Accuracy | ±0.5 °C |
| Resolution | 0.5 °C |
| LCD Operating Temperature | -20 to +70 °C |
| Measuring Response (T90) | 5 minutes |
| Memory Capacity | 1868 samples |
| Data Download Speed | 2400 bps |
| Sampling Frequency | 1 to 255 minutes |
| IP Rating | IP51 |
| Size | 80 × 57 × 20 mm |
| Weight | 70 g |
| Case Material | Polycarbonate/ABS |
| Storage Temperature | -40 to +50 °C |
| Power Source | User‑replaceable coin cell battery |
| Battery Life | 1 to 2 years |
Press and hold the start button for over one second to begin a recording cycle.
The replaceable coin cell battery typically lasts between one and two years.
The DigiTag is rated IP51.
