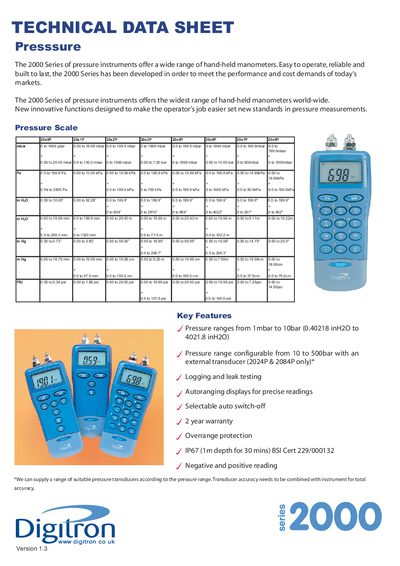

The 2000 Series of pressure instruments offers a wide range of hand-held manometers. Easy to operate, reliable and built to last, the 2000 Series has been developed in order to meet the performance and cost demands of today's markets. The 2000 Series of pressure instruments offers the widest range of hand-held manometers world-wide. New innovative functions designed to make the operator’s job easier set new standards in pressure measurements.
The 2000 Series of Digitron hand‑held manometers offers a wide range of pressure measurement options, from low‑pressure mbar ranges up to 10 bar, with configurable ranges when paired with external transducers. Designed for ease of use, reliability and durability, the series meets modern market demands for performance and cost.
Key features include autoranging displays, selectable auto‑switch‑off, over‑range protection, logging and leak testing, and a two‑year warranty. Common specifications list operating temperature, battery type and life, IP67 protection, dimensions, weight, and display details.
| Pressure range | 1 mbar to 10 bar (0.40218 inH₂O to 4021.8 inH₂O) |
|---|---|
| Battery type | Two AA or equivalent cells (not supplied) |
| Battery life | Typically 200 hours |
| Display size | 12.7 mm (0.5 in) custom LCD |
| Auto switch‑off time | 12 minutes |
| Dimensions | 155 × 67 × 40 mm (6.1 × 2.6 × 1.6 in) |
| IP rating | IP67 (as standard) with hose connected |
| Operating temperature | -0 °C to +50 °C (+14 °F to 122 °F) |
| Warranty | 2 year warranty |
The instrument measures from 1 mbar up to 10 bar, and can be configured to 50 bar when used with an external transducer.
The battery typically provides about 200 hours of operation.
It uses a 12.7 mm (0.5 in) custom LCD display.
Yes, it automatically switches off after 12 minutes of inactivity.
