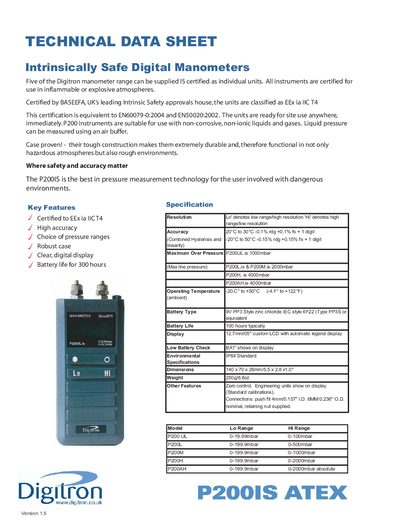

P200IS series digital pressure gauge is manufactured by Digitron company in the UK. It is a safety and explosion-proof pressure gauge and can be used to measure pressure in flammable and explosive gas environments. This series of products has the characteristics of high resolution, high accuracy, high temperature resistance and high protection.
The P200IS series is certified by BASEEFA as EEx ia IIC T4, meeting EN60079‑0:2004 and EN50020:2002 standards for use in inflammable or explosive atmospheres. The instruments are ready for immediate site use and are suitable for non‑corrosive liquids and gases, with an air‑buffer option for liquid pressure measurement.
Key features include a digital LCD display (12.7 mm/0.5"), up to 4100 hours of battery life (zinc‑chloride PP3 style), IP64 protection, and a robust case for harsh environments. Multiple pressure ranges are offered across the P200UL, P200L, P200M, P200H, and P200AH models, with clear engineering units and low‑battery indication on the display.
| Operating Temperature | -20°C to +50°C |
|---|---|
| Battery Life | 4100 hours (typical) |
| Display Size | 12.7 mm (0.5") custom LCD |
| Dimensions | 140 × 70 × 26 mm |
| Maximum Over‑Pressure (P200UL) | 1000 mbar |
| Pressure Range (P200UL) | 0‑19.99 mbar (low) / 0‑100 mbar (high) |
The device operates from –20 °C to +50 °C.
The battery provides up to about 4100 hours of operation under typical conditions.
