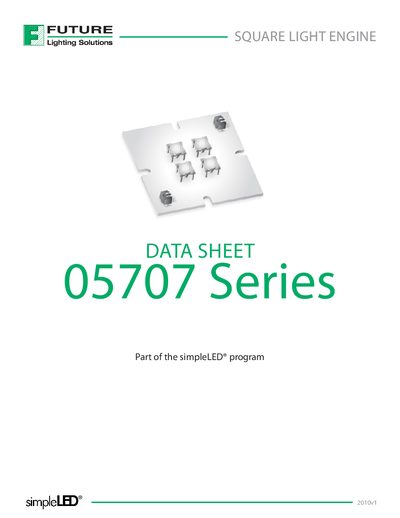

the document is a datasheet of simpleled05707 series, which introduces the features, characteristics, application scenarios and specifications of the product.
The simpleLED 05707 series consists of four high‑power LUXEON Rebel LEDs mounted on a 50 × 50 mm PCB. The light engine is offered with flexible optic and connector options, allowing customers to tailor the source for applications such as under‑cabinet, cove, accent and display lighting.
The sheet details mechanical dimensions, electrical parameters (forward voltage, power consumption), thermal resistance, environmental limits, and provides part‑numbering, accessory options, and thermal‑management guidelines to ensure reliable operation and maintain the 3‑year warranty.
| Size | 50 x 50 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco Mini‑CT (2106091‑1) |
| Thermal Resistance (Rth) | 21 K/W |
| Forward Voltage @350 mA | 10.2 V / 12.0 V / 16.0 V |
| Power Consumption @350 mA | 3.6 W / 4.2 W / 5.6 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
| Warranty | 3‑year manufacturer (Rena) warranty |
The product comes with a 3‑year manufacturer (Rena) warranty.
The light engine uses LUXEON Rebel LEDs.
It uses a Tyco Mini‑CT connector (part number 2106091‑1).
Typical applications include under‑cabinet lighting, cove lighting, accent lighting, display case lighting, and display lighting.
