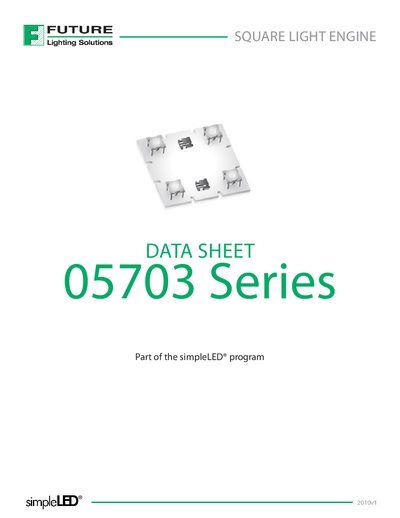

This document describes the features and characteristics of the Square Light Engine 2010v1® 05703 series, including high-reliability LED sources, rugged construction, multiple configurable options, flexible optic options, wide range drive current, and multiple white CCT options.
The 05703 Series Square Light Engine is part of Future's simpleLED® program and consists of four high‑power LUXEON Rebel LEDs. It offers configurable optics, connectors, and drive currents to suit a wide range of lighting applications such as under‑cabinet, cove, accent, and display lighting.
The datasheet outlines mechanical dimensions, electrical parameters, environmental limits, and thermal management guidelines. It also lists interconnection accessories, part numbers, and ordering information, along with warranty and certification details.
| Size | 75x75 mm |
|---|---|
| Source Type | LUXEON Rebel |
| Connector | Tyco CT (2‑292173‑2) |
| Thermal Resistance (junction‑to‑PCB) | 21 K/W |
| Forward Voltage @350 mA | 10.2‑16.0 V |
| Power Consumption @350 mA | 3.6‑5.6 W |
| Storage Temperature | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
It includes a three‑year manufacturer (Rena) warranty.
The light engine uses four high‑power LUXEON Rebel LEDs.
A heat sink thermal resistance of about 5.3 K/W is required.
Use the listed part numbers for CT cables and connectors, such as 1969343‑6 for a 300 mm white cable.
