This document introduces the features and characteristics of Futurelighting Solutions' 05712 series of circular LED light engines. The product has high reliability, rugged construction, and is suitable for cabinet lighting, cove lighting, accent lighting, display case lighting, and display lighting.

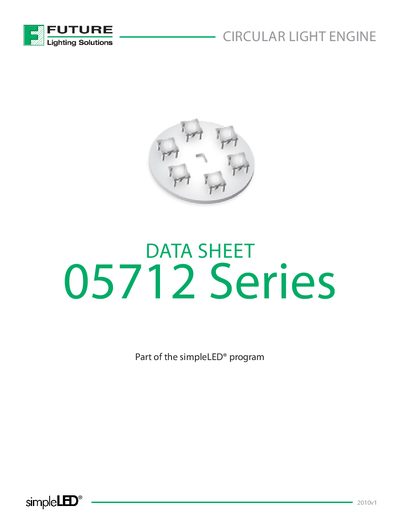

The simpleLED 05712 Series Circular Light Engine is a high‑power LED light engine that incorporates six LUXEON Rebel LEDs. It is designed for flexible integration, allowing customers to select the LED, optics and connector that best suit their application, such as under‑cabinet, cove or accent lighting.
The document details mechanical dimensions, electrical parameters, environmental limits, thermal management guidelines and part‑numbering options. It also includes accessories for interconnections and contact information for Future Lighting Solutions, the division of Future Electronics that supplies the product.
| LED Source Type | LUXEON Rebel |
|---|---|
| Diameter | 45 mm |
| Connector | Tyco miniCT (2106091-1) |
| Thermal Resistance (Rth) | 21 K/W |
| Forward Voltage @350 mA | 15.3 V |
| Power Consumption @350 mA | 5.4 W |
| Storage Temperature Range | -40 °C to +70 °C |
| PCB Temperature Range | -20 °C to +80 °C |
| Warranty | 3‑Year Manufacturer (Rena) Warranty |
| Certifications | CE certified, UL recognized |
The series uses LUXEON Rebel LEDs.
The light engine uses a Tyco miniCT connector (part number 2106091-1).
The device can be stored from –40 °C up to +70 °C.
A heat sink with an Rth of 3 K/W is required.
