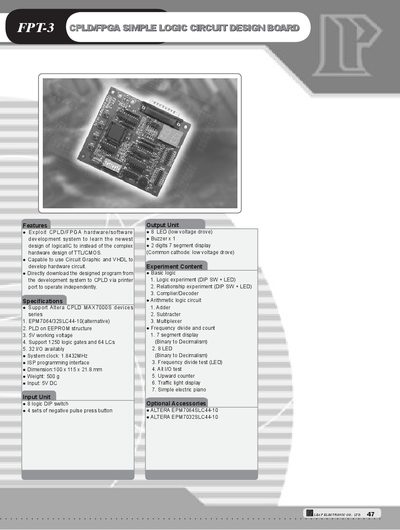

The 47 CPLD/FPGA SIMPLE LOGIC CIRCUIT DESIGN BOARD FPT-3 from LEAP ELECTRONIC CO., LTD. is a hardware/software development system for learning the newest design of logical ICs to replace the complex hardware design of TTL/CMOS. It supports Altera CPLD MAX7000S devices series with 1250 logic gates and 64 LCs, and allows the use of Circuit Graphic and VHDL to develop hardware circuits.
The FPT-3 design board is a CPLD/FPGA development system aimed at learning and experimenting with simple logic circuits. It supports Altera MAX7000S devices and allows direct ISP programming via a printer port.
Key features include 5 V working voltage, a 1.8432 MHz system clock, 100 × 115 × 21.8 mm dimensions, 500 g weight, 32 I/O pins, 1250 logic gates, 64 logic cells, eight LEDs, a buzzer, two 7‑segment displays, eight DIP switches and four negative‑pulse buttons for a variety of logic, arithmetic and frequency‑division experiments.
| Working voltage | 5 V |
|---|---|
| System clock | 1.8432 MHz |
| Dimensions | 100 × 115 × 21.8 mm |
| Weight | 500 g |
| I/O pins | 32 |
| Logic gates | 1250 |
| Logic cells (LCs) | 64 |
| Input voltage | 5 V DC |
| LED count | 8 |
| Buzzer | 1 |
| 7‑segment displays | 2 digits |
| DIP switches | 8 |
| Negative‑pulse buttons | 4 sets |
The board supports Altera CPLD MAX7000S series, including EPM7064/32SLC44-1 and EPM7032SLC44-10 devices.
The system clock runs at 1.8432 MHz.
The board provides 32 I/O pins.
