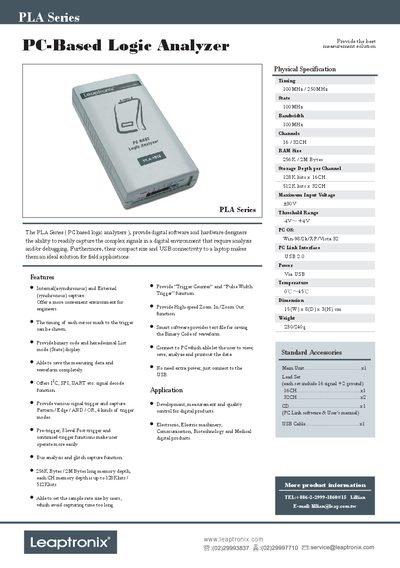

PLA series is a PC-based logic analyzer that provides digital software and hardware designers the ability to capture complex signals in a digital circuit.
The PLA Series is a compact PC‑based logic analyzer designed for digital hardware and software developers. It connects via USB to a laptop, providing a portable solution for field measurements and debugging of complex digital signals.
Key specifications include up to 32 channels, 250 MHz timing analysis, 2 M‑byte memory depth, and a variety of trigger modes such as pattern, edge, AND/OR, pulse‑width and bus analysis. The unit is powered directly from the USB port and comes with standard accessories like lead sets and a USB cable.
| Timing Analysis | 100 MHz / 250 MHz |
|---|---|
| State Analysis | 100 MHz |
| Bandwidth | 100 MHz |
| Channels | 16 CH / 32 CH |
| RAM Size | 256 KB / 2 MB |
| Storage Depth per Channel | 128 Kbits × 16 CH / 512 Kbits × 32 CH |
| Maximum Input Voltage | +30 V |
| Threshold Range | -4 V ~ +4 V |
| PC Link Interface | USB 2.0 |
| Power | Via USB |
| Operating Temperature | 0 °C ~ 45 °C |
| Dimension | 15 W × 8 D × 3 H cm |
| Weight | 230 g / 240 g |
The PLA‑2532 model supports timing analysis up to 250 MHz.
The PLA‑1016 provides 16 channels, while the PLA‑2532 provides 32 channels.
It is powered directly from the USB connection and requires no external power supply.
It offers pattern, edge, AND, OR trigger modes, pre/post trigger, pulse‑width trigger, and bus analysis.
