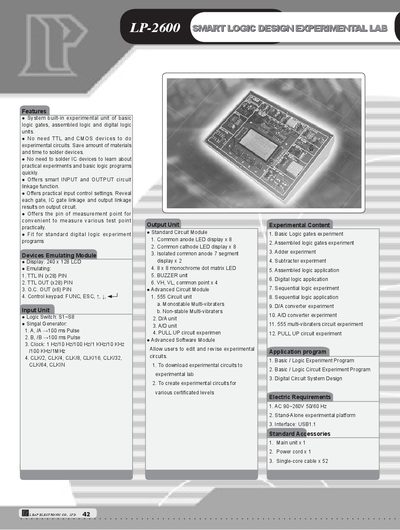

LP-2600 is an intelligent logic design experimental lab produced by LEAP Electronic Co., Ltd. It built-in experimental units of basic logic gates, assembled logic and digital logic units. This platform does not need TTL and CMOS devices. It can be used directly for experiments. No need to solder devices. It saves a lot of materials and time for soldering devices. It can quickly learn basic logic circuit experiments and programming.
The LP-2600 is a self‑contained experimental platform that lets users explore basic logic gates, assembled logic, and digital logic circuits without soldering individual TTL or CMOS devices. It provides smart input and output linkage, measurement points, and a programmable software environment for creating and downloading experimental circuits.
The system includes a 240 × 128 LCD, standard circuit modules (LED displays, 7‑segment displays, dot‑matrix LED, buzzer, common‑point pins), advanced modules (555 timer circuits, D/A and A/D converters, pull‑up circuits), and a software module for editing and revising experiments. Power is supplied from AC 90‑260 V (50/60 Hz) and the unit connects via USB 1.1.
| Display | 240 × 128 LCD |
|---|---|
| Power Supply | AC 90‑260 V, 50/60 Hz |
| Interface | USB 1.1 |
| TTL Input Pins | 28 |
| TTL Output Pins | 28 |
| Open‑Collector Output Pins | 6 |
| Signal Generator Frequencies | 1 Hz‑10 MHz (various steps) |
It uses a 240 × 128 LCD screen.
The unit provides 28 TTL input pins.
It operates from AC 90 V to 260 V at 50/60 Hz.
The device connects via a USB 1.1 interface.
