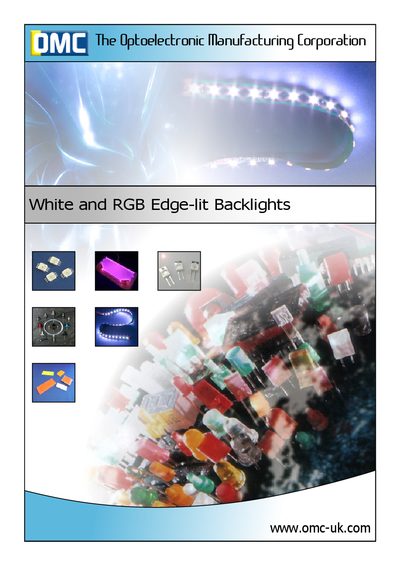

The Optoelectronic Manufacturing Corporation（OMC）White and RGB Edge-lit Backlights Technical Datasheet
The Optoelectronic Manufacturing Corporation (OMC) offers a range of edge-lit LED backlights in both white and full‑colour RGB versions. These backlights use a 3 mm thick white reflector lightguide and are designed for LCD displays, transparency illumination, photographic equipment, and other lighting needs.
Key features include low cost, high brightness, even diffused illumination, a wide range of standard sizes, low current operation (as low as 2 mA), high reliability, RGB colour capability, low electrical noise, and RoHS compliance. Typical applications cover control equipment, instrumentation, general LCD backlighting, illuminated keypads, signage, automotive dash displays, and more.
| Number of Emitters (S036 White) | 4 |
|---|---|
| Max DC Forward Current per Emitter | 30 mA |
| Overall Size (S036 White) | 48.7 mm x 17 mm x 3 mm |
| Recommended PCB Hole Size | 1.0 mm |
| Emitter Pin Pitch | 0.1 inches |
They are low cost, high brightness, provide even diffused illumination, come in a vast range of standard sizes, are easy to interface, operate at low current (as low as 2 mA), have high reliability, offer RGB colour capability, generate low electrical noise, and are RoHS compliant.
Typical applications include control equipment, instrumentation, general LCD backlighting, transparency illumination, illuminated keypads, static signs, photography or CCD imaging, light boxes for signage and point‑of‑sale, and automotive dash displays.
