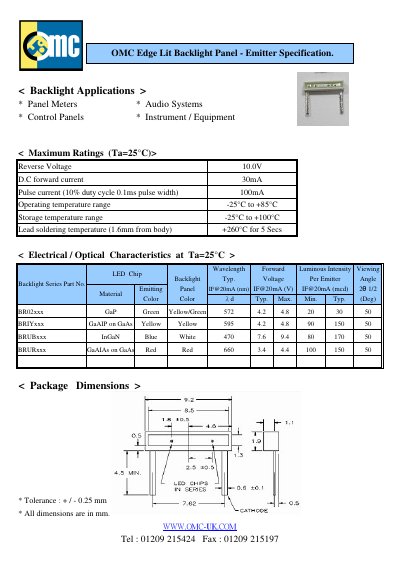

This document describes the features and characteristics of backlight applications, including panel meters, audio systems, control panels, and instrument/equipment. It also provides information on maximum ratings, electrical/optical characteristics, and package dimensions.
This document details the specifications of OMC edge‑lit LED backlight panels, covering applications such as panel meters, audio systems, control panels, and instrument equipment. It lists maximum ratings, electrical and optical characteristics, and package dimensions for a range of colour variants. Key data include operating temperature limits, typical forward voltage and current, and mechanical dimensions for the various S‑series panel sizes. The manual also describes bi‑colour configurations that allow colour switching between green and red for alarm or status indication.
| Operating temperature range | -25°C to +100°C |
|---|---|
| Storage temperature range | -25°C to +85°C |
| Typical forward voltage | 10.0 V |
| Typical forward current | 100 mA |
| Package dimensions (S36 type) | 47.50 x 17.00 x 3.0 mm |
| Number of emitters per module | 4 |
They can operate from –25 °C up to +100 °C.
Yes, bi‑colour versions have green emitters on one edge and red emitters on the opposite edge, allowing colour change for alarm indication.
An S36 module measures 47.50 mm × 17.00 mm × 3.0 mm.
