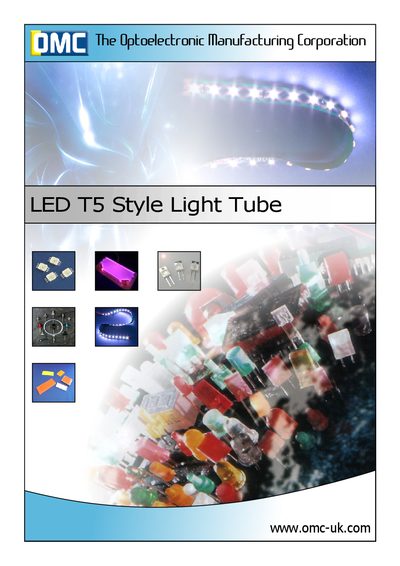

The Optoelectronic Manufacturing Corporation LED T5 Style Light Tube Technical Datasheet is about the T5 style LED lighting tube produced by OMC company. This lamp tube has ultra-high brightness, high efficiency, low power consumption and other characteristics, and is suitable for applications such as machinery lighting, shelf displays, backlighting, automotive lighting, display cabinets and more.
The OMC LED T5 Style Light Tube is an ultrabright LED lighting solution that matches the diameter of a standard T5 fluorescent tube. It operates from a safe 24 V DC supply and is supplied with mounting clips for easy installation in a wide range of applications, from machinery lighting to automotive and cabinet illumination.
The datasheet provides detailed electro‑optical specifications, mechanical dimensions for 1‑5 ft lengths, and absolute maximum ratings. It also includes fixing method dimensions, application notes, and safety recommendations for interior use.
| Tube diameter | 16 mm |
|---|---|
| Power consumption (1 ft) | 2.88 W |
| Length (1 ft) | 321 mm |
| Forward current (1 ft) | 120 mA |
| Correlated colour temperature | 6500 K / 3500 K |
| Maximum input voltage | 24 V DC |
| Operating temperature range | -20 °C to +40 °C |
The tube requires a 24 V DC power supply.
Yes, it is easily dimmable using PWM control.
No, it is designed for interior use and should not be used in damp environments.
The tube is offered in 1 ft, 2 ft, 3 ft, 4 ft, and 5 ft lengths.
