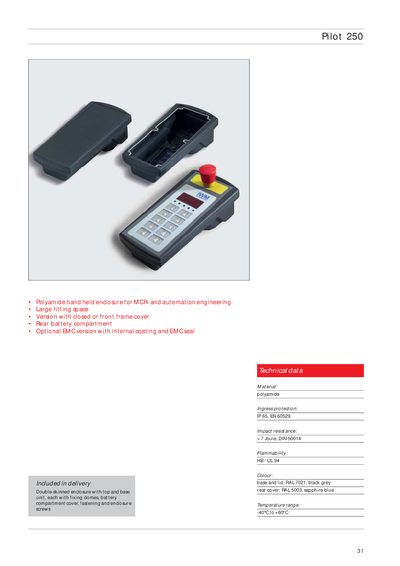

This document introduces a polyamide hand held enclosure for MCR and automation engineering. The enclosure has a large fitting space and is available in versions with closed or front frame cover. It features a rear battery compartment and an optional EMC version with internal coating and EMC seal. The material is polyamide and it has an IP65 ingress protection rating, impact resistance of > 7 Joule, and flammability rating of HB/UL 94. The color is RAL 7021 black grey for the base and lid, and RAL 5003 sapphire blue for the rear cover. The temperature range is -40°C to +60°C.
The Pilot 250 is a polyamide handheld enclosure designed for automation engineering. It offers a large fitting space, optional EMC coating, and a double‑skinned construction with a rear battery compartment.
The handbook lists technical specifications such as ingress protection, impact resistance, flammability rating, colour options, temperature range, as well as detailed dimensions, weight, and available accessories for the two enclosure versions (250/1 and 250/2).
| Material | Polyamide |
|---|---|
| Ingress Protection | IP65, EN 60529 |
| Impact Resistance | > 7 Joule, DIN 50014 |
| Flammability | HB / UL 94 |
| Colour (base and lid) | RAL 7021, black grey |
| Colour (rear cover) | RAL 5003, sapphire blue |
| Temperature Range | -40 °C to +60 °C |
| Dimensions (L × W × H) | 140 × 120 × 86 mm |
The enclosure is made of polyamide.
It has an IP65 rating (EN 60529).
The base and lid are RAL 7021 black‑grey, and the rear cover is RAL 5003 sapphire blue.
It can operate from –40 °C up to +60 °C.
