Pilot 110 - 150 is a control cabinet launched by Siemens. The cabinet is made of polyamide material, has an IP65 protection rating, supports a temperature range of -40°C to +60°C, and can be used in automation and control engineering. The cabinet has a large internal space and can accommodate a large number of components.

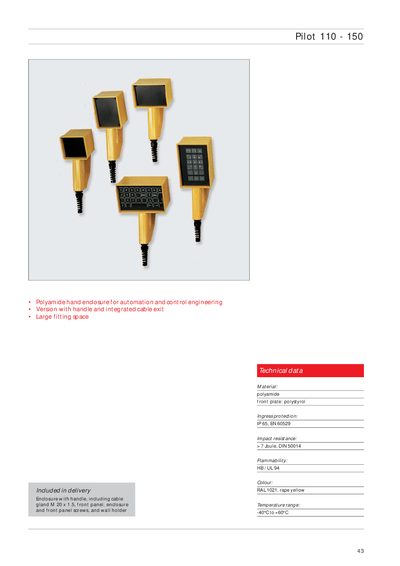

The Pilot 110‑150 series offers polyamide hand enclosures with a front plate made of polystyrol, rated IP65 and UL 94 compliant. The enclosures are available in a bright RAL1021 (rape yellow) colour and operate from –40 °C to +60 °C.
The leaflet lists each model’s overall dimensions, mounting depth, and weight. For example, the Pilot 130 measures 85 × 115 × 221 mm (W × L × H) and weighs 0.341 kg, while the larger Pilot 150 measures 105 × 160 × 266 mm and weighs 0.434 kg.
| Front plate material | Polystyrol |
|---|---|
| Body material | Polyamide |
| UL rating | UL 94 |
| Colour | RAL1021 (rape yellow) |
| Operating temperature range | -40 °C to +60 °C |
The front plate is made of polystyrol.
